Leírás és Paraméterek

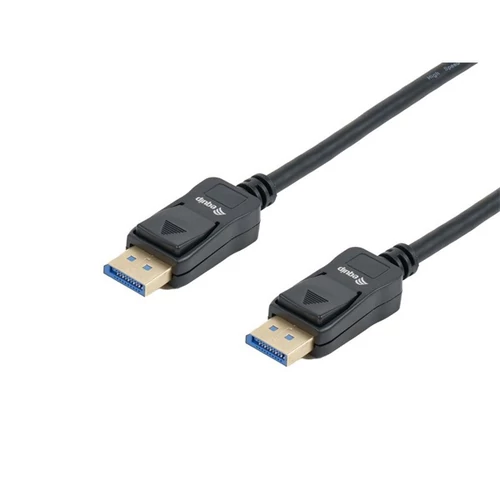

- DisplayPort 2.1 Male to Male
- Supports video resolutions up to 16K/60Hz (with DSC)
- Gold Plated Connectors for high signal quality
- Downwards compatible to DisplayPort 1.4, 1.3, 1.2 and 1.1
- Transmission of audio and video signals
- Compliant with VESA standard for DisplayPort Cable
- Bandwidth up to 40Gbps
- Built with sturdy metal latch
- Supports HDCP 1.4 2.2 and 2.3
- Supports HDR 10 and HDR10+ (High Dynamic Range)
- Supports DSC (Display Stream Compression)
- Supports MST (Multi Stream Transport)
- Supports UHBR 10 (10 Gbps / Lane) data rate
- Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
Resolution up to below: (depend on the system and the connnect hardware):
Data transfer without DSC (display stream compression).
16k: 15360 x 8640 @ 30Hz
10k: 10240 x 4320 @ 30Hz
8k: 7680 x 4320 @ 30Hz
5k: 5120 × 2880 @ 60Hz
4k: 3840 x 2160 @ 144Hz
2k: 2560 x 1440 @ 240Hz
1080P: 1920 x 1200 @ 240Hz
Data transfer with DSC support. (display stream compression).
16k: 15360 x 8640 @ 60Hz
10k: 10240 x 4320 @ 60Hz
8k: 7680 x 4320 @ 60Hz
5k: 5120 × 2880 @ 120Hz
4k: 3840 x 2160 @ 240Hz
1080P: 1920 x 1200 @ 240Hz
| 1. Csatlakozó | Display Port |
| 2. Csatlakozó | Display Port |
| Hosszúság | 2 |
